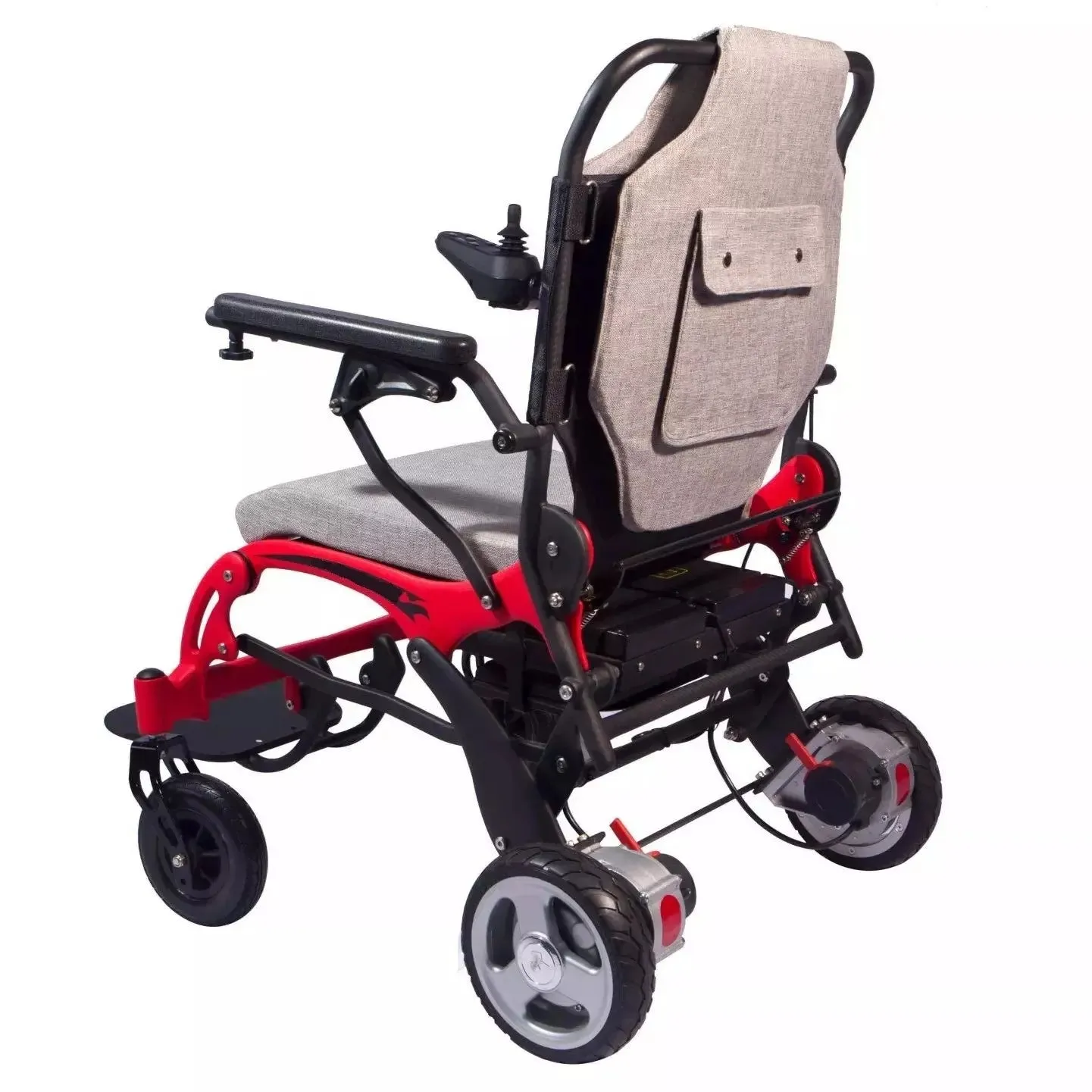

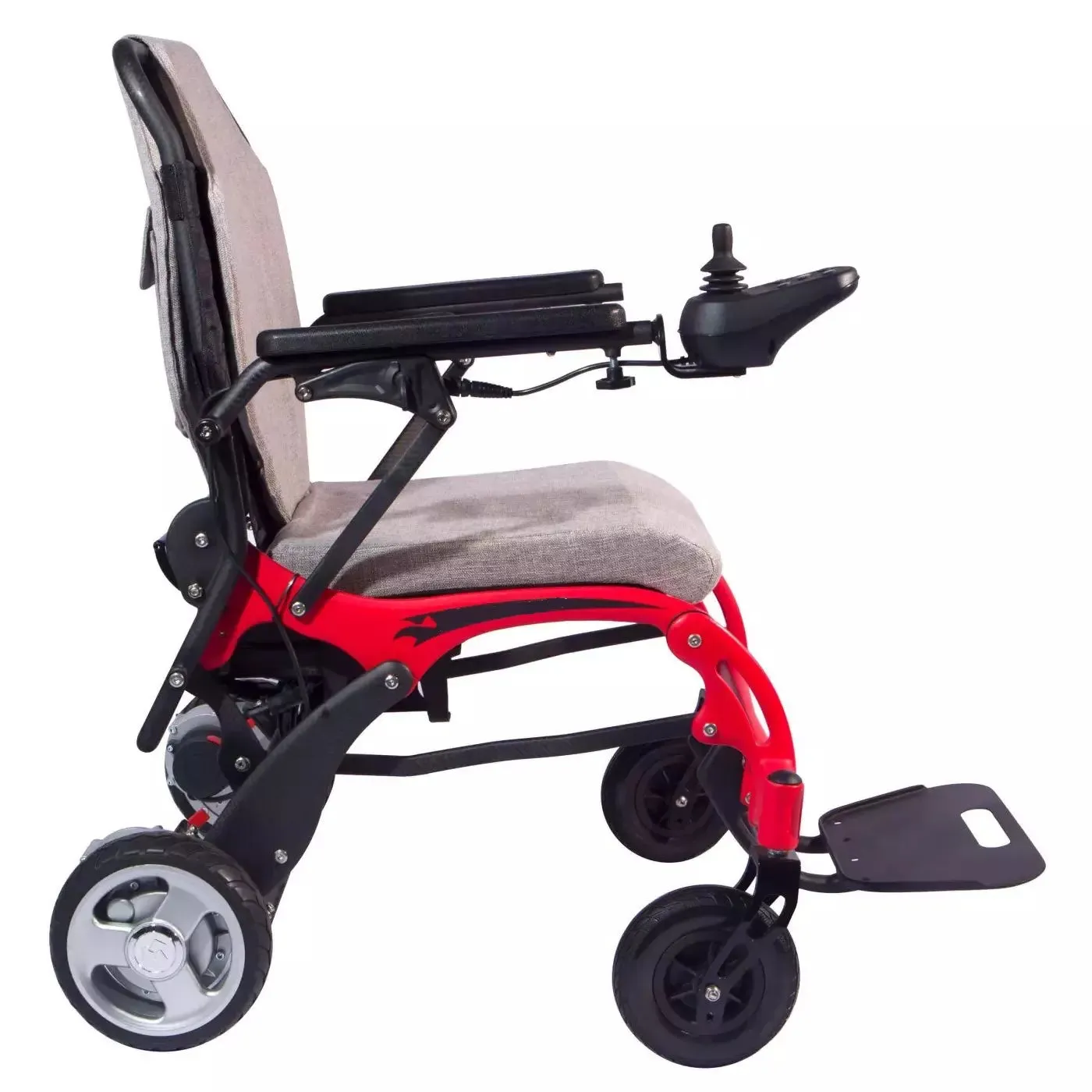

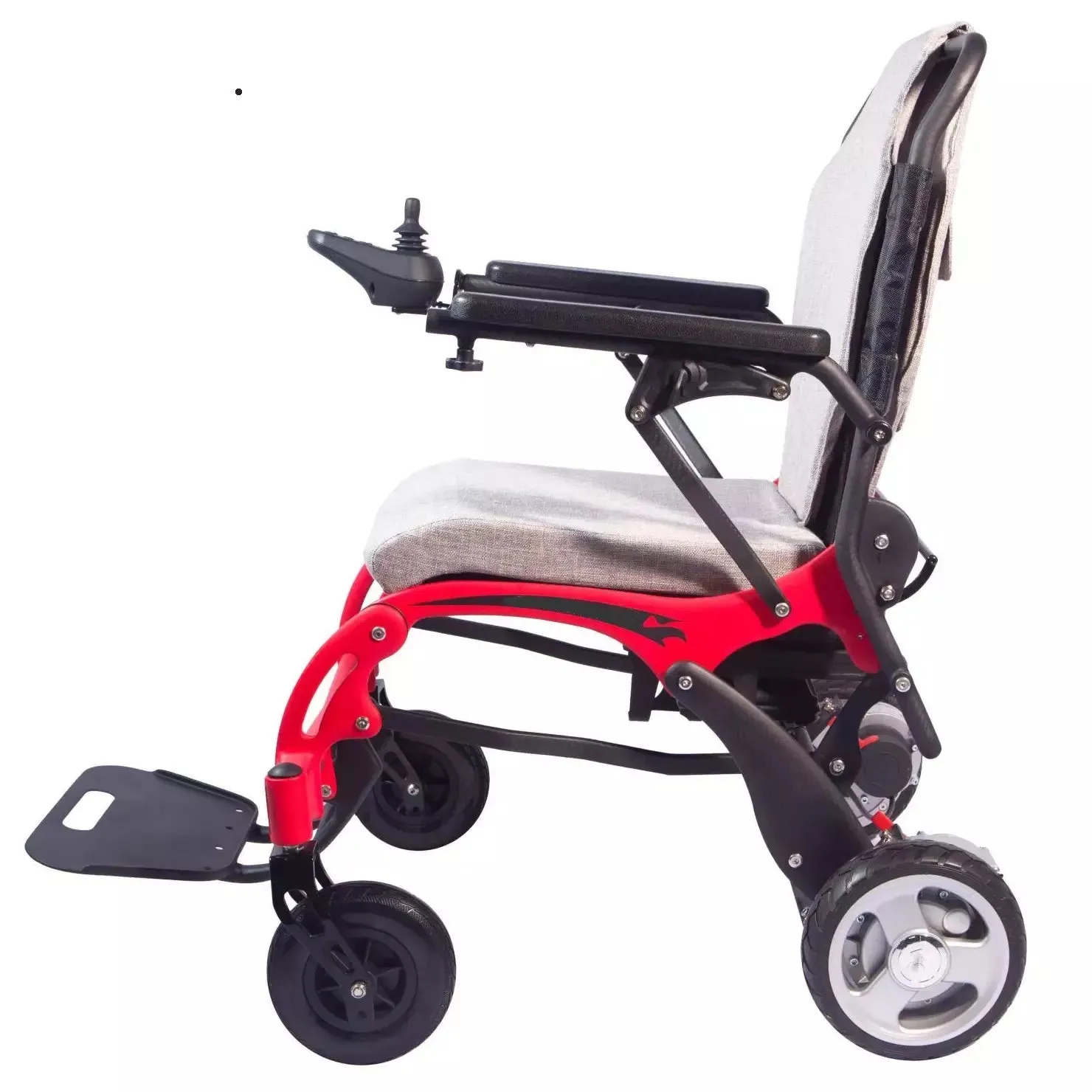

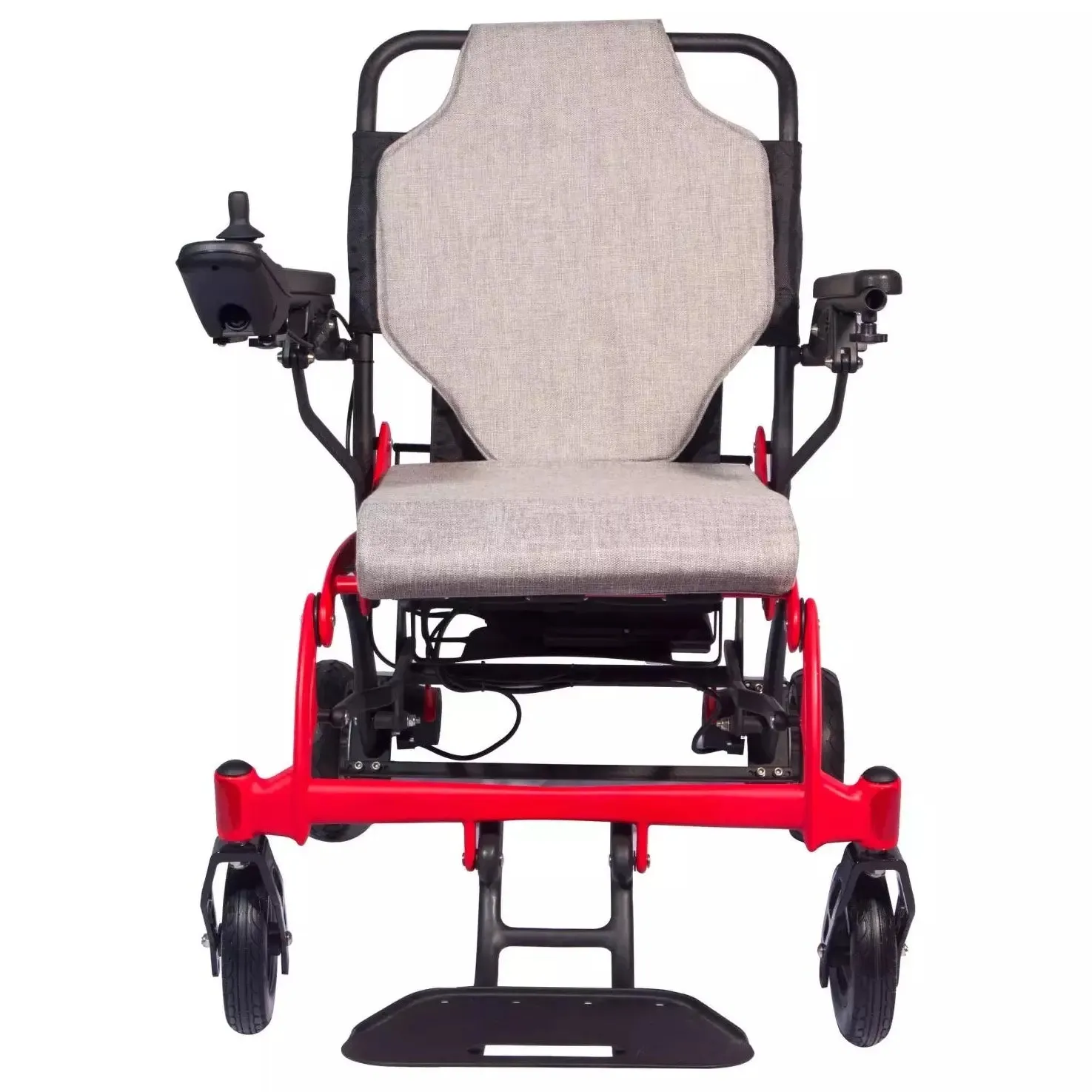

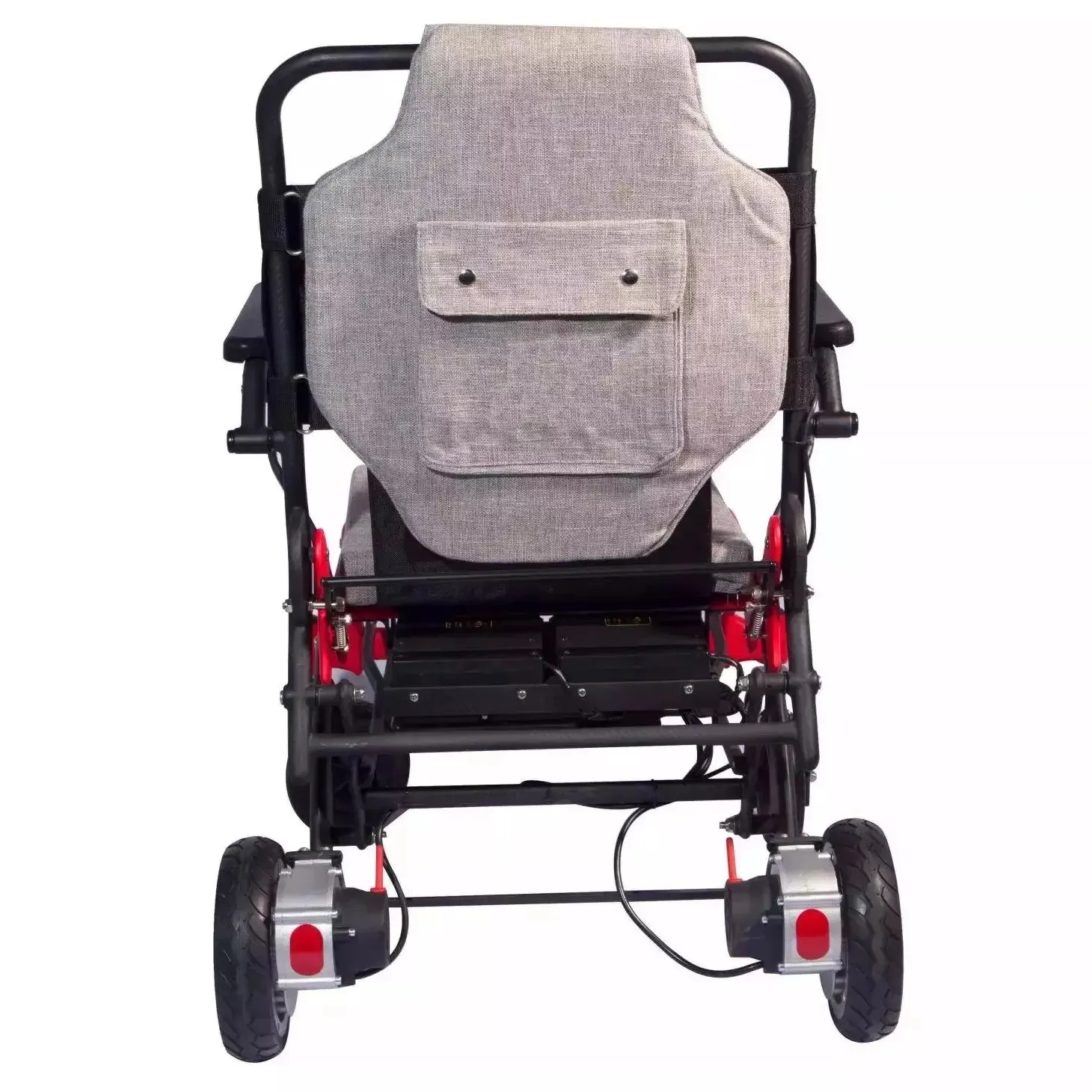

The Carbon Fiber Folding L.ithium Wheelchair is ultra-lightweight, incredibly strong, with simple stylish curves.

The lightest folding electric wheelchair on the market.

Fully foldable and portable for easy transport and storage.

Perfect for travel. Stewardesses can and are required to stow in airplanes forward coat locker upon your request. No waiting or damage from being checked!

Advantage of carbon fiber wheelchair

   1. Lightweight. Carbon fiber is a low density material with a very high strength to weight ratio

   2. High tensile strength. One of the strongest of all commercial reinforcing fibers when it comes to tension, carbon fiber is very difficult to stretch or bend

   3. Low thermal expansion. Carbon fiber will expand or contract much less in hot or cold conditions than materials like steel and aluminum

   4. Exceptional durability. Carbon fiber has superior fatigue properties compared to metal, meaning components made of carbon fiber won’t wear out as quickly under the stress of constant use

   5. Corrosion-resistance. When made with the appropriate resins, carbon fiber is one of the most corrosion-resistant materials available

   6. Radiolucence. Carbon fiber is transparent to radiation and invisible in x-rays, making it valuable for usage in medical equipment and facilities

   7. Ultra-violet resistant. Carbon fiber can be UV resistant with use of the proper resins

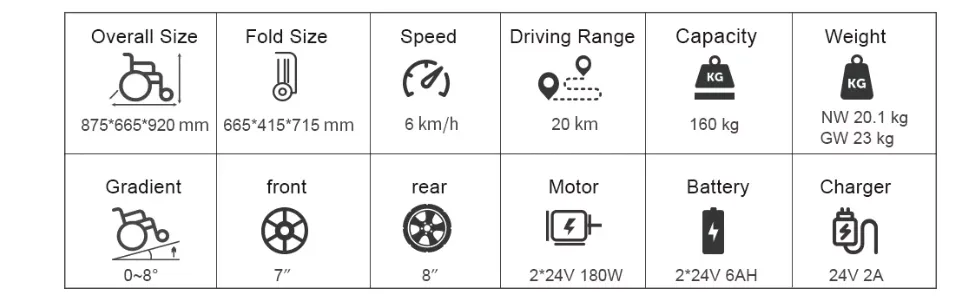

Specifications

• Two independent rear-driven 180-watt high torque Brushless Motors
• Two 24Volt 6Ah airline-approved lithium batteries (12AH total)

• Weight: only 43lb Including batteries or 37.5 pounds (17kg) with two 2.6-pound batteries removed
• Unfolded Dimensions: 36.2 x 34.4 x 26 inches (920x875x665 mm)

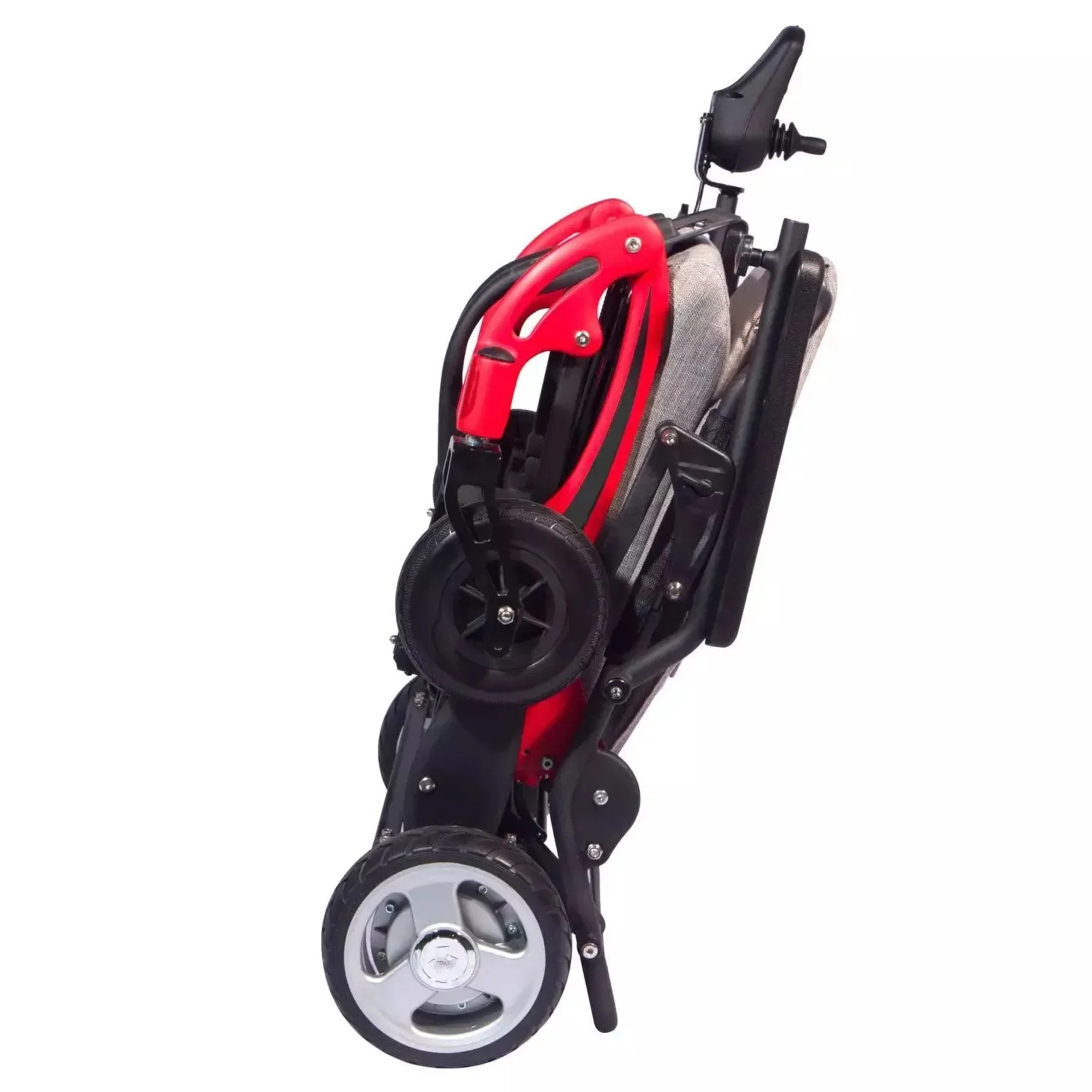

• Folded Dimensions: 16.3" thick x 28" wide x 34.5" high  (415x875x715 mm)
• Max Speed 4 mph (6 km/h)
• Max Range: 15 mi (25km)
• Max Occupant Weight: 353lb (160kg)
• Seat Height: 20" front, 19" rear (500mm front, 480mm rear)
• Seat Width 16.5" (420mm), Seat Depth: 17 inches (430mm)
• Backrest Height from Seat 21" (530mm) and from Ground 37" (940mm)
• Armrest Height from Seat 9.8" (250mm) and from Ground 28" (710mm)
• Armrest Width Inside 20' (500mm) and Outside 24" (615mm)
• Rear Wheel 8”x 1.95” solid PU tire, and Front Wheel 7”x 1.25” solid PU tire
• Ground Clearance 4"-6.7" (100mm-170 mm)
• Accessories:  Headrest, Travel Bag, Joystick Programmer, Phone Holder, Cup Holder

Shipping Package Size: 33x29.5x17 inches 57.4 lb (830x750x430mm 26 kg)

Expected Life: 5 to 10 years.  For longest service life, when storing for more than one month, lithium batteries are easily removable to store indoors at 40%-60% charge.

Warranty: Frame 3 years, Motors & Controller 1 year, and Batteries 6 months
